Lift Director Grove Load Chart

Question Answer

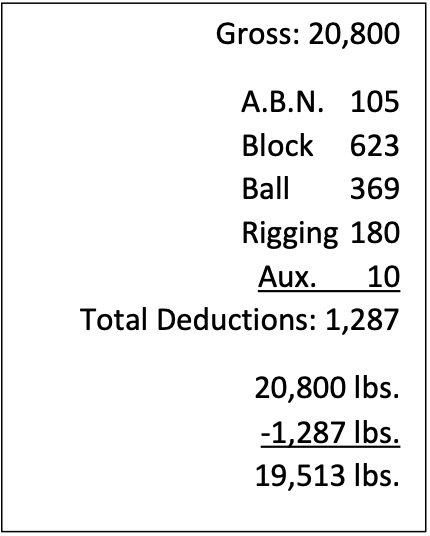

1 C 19,513 lbs.


Question Answer

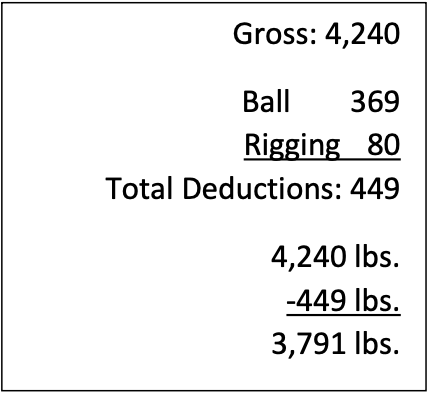

2 A 3,791 lbs.


Question Answer

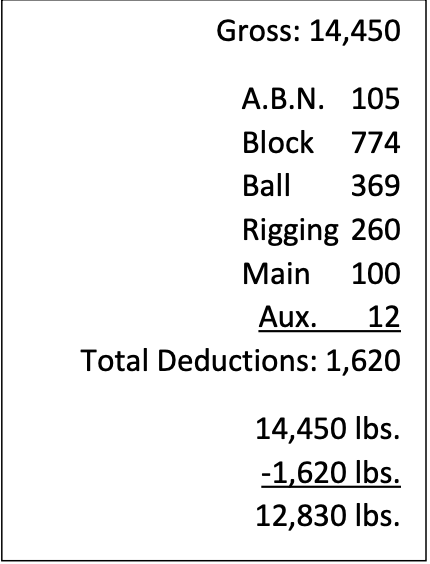

3A B 12,830 lbs.


Question Answer

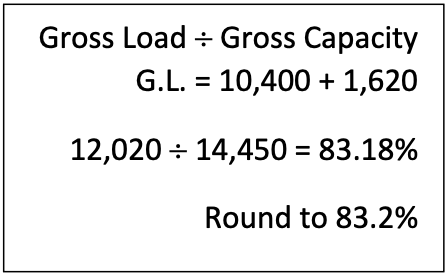

3B B 83.2%


Question Answer

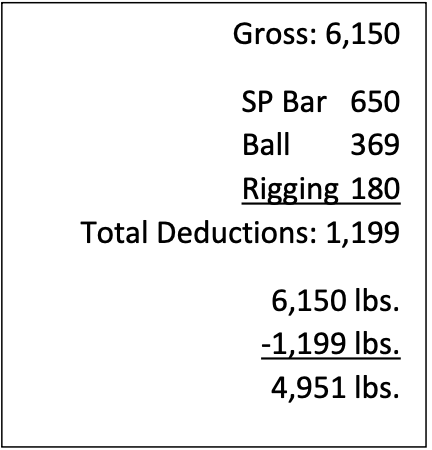

4A D 4,951 lbs.


Question Answer

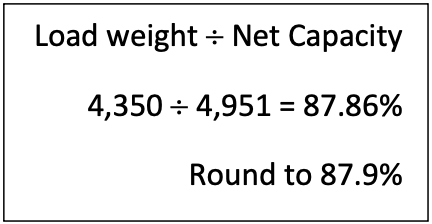

4B D 87.9%
