Lift Director Manitowoc Load Chart

Question Answer

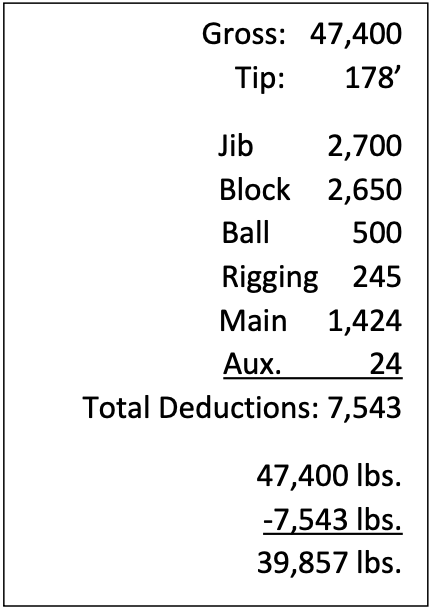

1 B 39,857 lbs.


Question Answer

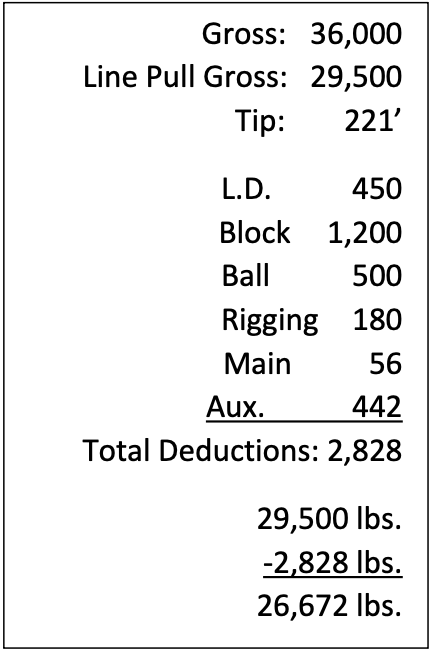

2 A 26,672 lbs.


Question Answer

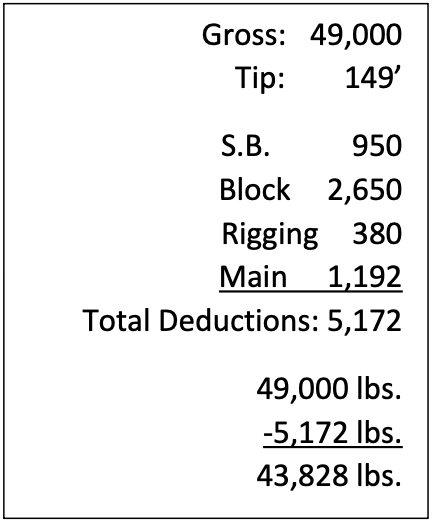

3A D 43,828 lbs.


Question Answer

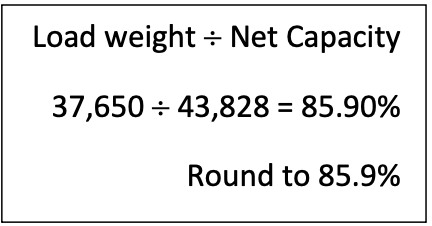

3B B 85.9%


Question Answer

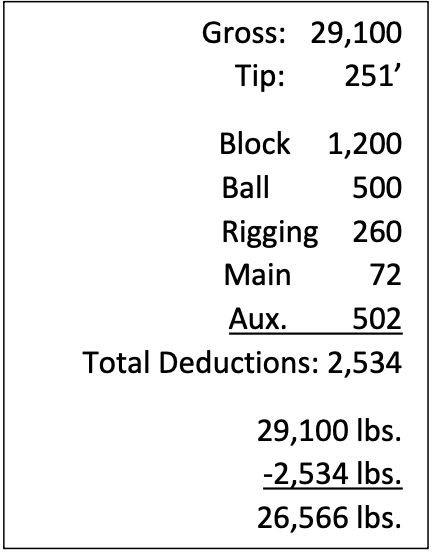

4A A 26,566 lbs.


Question Answer

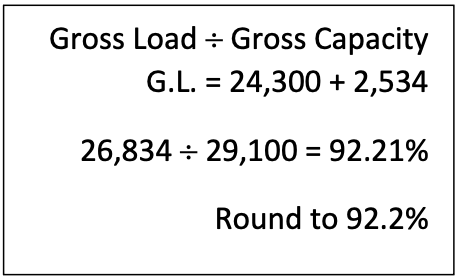

4B A 92.2%
